Máquina de termoformado de alta velocidad de 3 estaciones DW3

Máquina de termoformado de alta velocidad de 3 estaciones DW3
Máquina de termoformado de alta velocidad de 3 estaciones DW3
Máquina de termoformado de alta velocidad de 3 estaciones DW3
Solicite un presupuesto

Descripción
Our company provides DW3-63 high speed thermoforming machine with maximum forming area of 630*440mm and is equipped with three stations, which are responsible for forming, cutting and stacking and is suitable for PP, PS, OPS, PET, PVC, PE, PLA and other materials. La máquina de termoformado plástico TCC es un equipo multifuncional compuesto por una termo formadora, una maquina automática de perforación, una máquina de corte, conteo y almacenamiento que funcionan automáticamente.

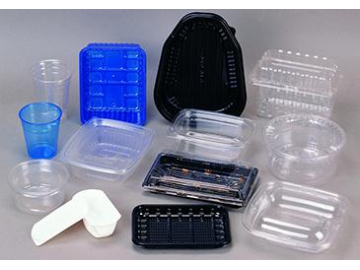

  • Contenedor de comida
  • Food packaging box

Proceso técnico
Alimentación calefacción formación corte apilado
Parámetros técnicos
Área maxima de formación mm 630×440
Área minima de formación mm 310×250
Tamaño máximo de herramienta mm 630×440
Grosor adecuado de la lámina mm 0.2-2.0
Profundidad de formación mm ≤±120
Eficiencia de trabajo pcs/min ≤50
Consumo máximo de aire L/min 4500-5000
Potencia de calentamiento kW 76.8
Dimensiones de la máquina m 11.5L×2.1W×2.5H
Peso total T 13
Potencia nominal kW 100

Advantages
1. DW3-63 high speed thermoforming machine has high manufacturing speed and the maximum speed can be up to 50 cycles per minute.
2. Our thermoforming machines are all equipped with absolute value servo control system and operation interface of number axis aided parameter display and advanced automatic system, which can keep superior performance of processing PP, PS, OPS, PE, PVC, APET, CPET, etc.
3. We also adapt simple mould replacing system according to ergonomic principle, which can largely reduce the time for replacing mould.
4. The cutting type of steel blade can be cooperated with the design of stacking equipment, which is beneficial to improve manufacturing speed and ensure the maximum production area.
5. The series of plastsic thermoforming machine is equipped with advanced heating system with new temperature control module and short response time, which can reduce energy consumption and improve working efficiency.
6. The series of DW type thermoforming machine has low noise at working and has high reliability, which is very convenient for maintenance and operation.
